DC Motors
Data Group: 182
SKU: 1111466
Weight (Kg): 0.1000

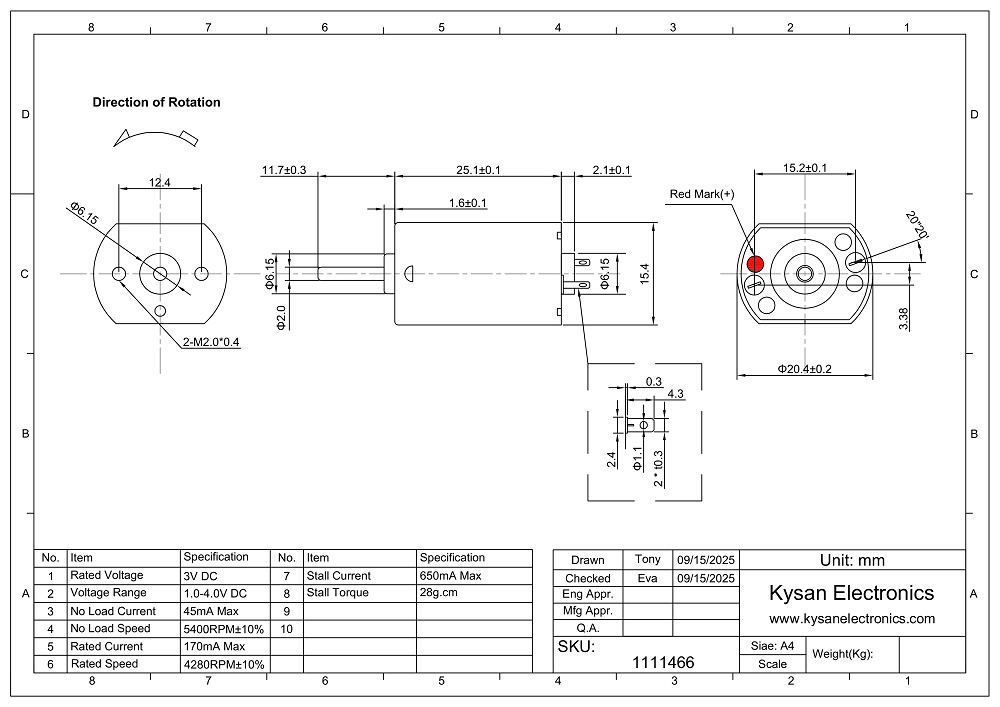

Decsription: FF-130RH-15210
HS Code: 8501.31.6000
Applications: Office Automation Equipment,CD-ROM.
Automotive Products: Conditioning Scamper Actuator,Electric
MFG MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE V RPM A RPM A mN-m g-cm W mN-m g-cm A
FF-130RH-15210 1.0-4 3 5400 0.045 4280 0.17 0.57 5.8 0.26 2.74 28 0.65
FF-130RH-11340 3.5 - 5.5 5 5400 0.03 4220 0.11 0.56 5.7 0.25 2.55 26 0.38
FF-130SH-14230-3V 2.5-10 3 3600 0.037 2850 0.14 0.74 7.5 0.22 3.53 36 0.53
FF-130SH-14230-6V 2.5 - 10.0 6 7400 0.05 6060 0.23 1.2 12.3 0.76 6.67 68 1.03
FF-130SH-11340-7.5V 3.0-12 7.5 6100 0.033 4920 0.14 1.06 10.9 0.55 5.49 56 0.57
FF-130SH-11340 3.0-12.0 7.5 6100 0.033 4920 0.14 1.06 10.9 0.55 5.49 56 0.57
FF-130SH-2769   3 12500
