DC Motors |
|
|
|
|
|
 Data Group: 229
SKU: 1112039
Weight (Kg): 0.1000
Decsription: RE-280RA-20120
HS Code: 8501.31.6000
Applications: Massager, vibrator, toys & models
 |
|
|
|
|
|
MFG MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
RANGE |
V |
RPM |
A |
RPM |
A |
mNm |
g-cm |
W |
mNm |
g-cm |
A |

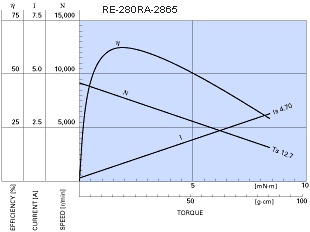

| RE-280RA-2865 |
1.5 - 3.0 |
3 |
9200 |
0.16 |
7770 |
0.87 |
1.98 |
20.2 |
1.61 |
12.7 |
129 |
4.7 |
| RE-280RA-20120 |
3.0-6.0 |
4.5 |
7500 |
0.08 |
6300 |
0.42 |
1.77 |
18.1 |
1.17 |
11.1 |
113 |
2.21 |
| RE-280RA-2485 |
1.5 - 4.5 |
3 |
7000 |
0.12 |
5800 |
0.58 |
1.68 |
17.1 |
1.02 |
9.8 |
100 |
2.8 |
| RE-280SA-2865 |
1.5 - 4.5 |
3 |
7100 |
0.16 |
6000 |
0.88 |
2.58 |
26.3 |
1.62 |
16.7 |
170 |
4.8 |
| RE-280SA-20120 |
3.0-6.0 |
4.5 |
5800 |
0.08 |
4890 |
0.43 |
2.26 |
23.1 |
1.16 |
14.5 |
148 |
2.34 |
| RE-280SA-2485 |
3.0-6.0 |
4.5 |
8100 |
0.13 |
6880 |
0.73 |
2.74 |
27.9 |
1.97 |
18.1 |
185 |
4.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
