DC Motors |
|
|
|
|
|
 Data Group: 256
SKU: 1112054
Weight (Kg): 0.5000
Decsription: RS-540SA-30100
HS Code: 8501.31.6000
Applications: Office Automation Equipment> Printer / Copy Machine / Laser Printer
 |
|
|
|
|
|
Untitled Document
MFG MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
RANGE |
VDC |
RPM |
A |
RPM |
A |
mN-m |
g-cm |
W |
mN-m |
g-cm |
A |

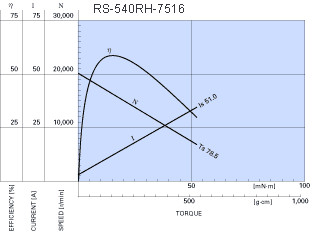

| RS-540RH-7516 |
2.4 - 4.5 |
3.6 |
20200 |
2.9 |
16310 |
12.2 |
15.1 |
154 |
25.8 |
78.5 |
800 |
51 |
| RS-540RH-5045-6V |
4.5 - 9.6 |
6 |
11600 |
0.82 |
9660 |
4.09 |
14.4 |
147 |
14.6 |
86.3 |
880 |
20.4 |
| RS-540SH-5045-12V |
4.5 - 12.0 |
12 |
17500 |
0.95 |
15080 |
5.93 |
31.8 |
324 |
50.1 |
230 |
2345 |
37 |
| RS-540SA-4070 |
6.0-12 |
12 |
11000 |
0.5 |
9360 |
2.87 |
235 |
23.04 |
22.58 |
154.9 |
1580 |
16.46 |
| RS-540SA-26135 |
12.0-24.0 |
12 |
5100 |
0.23 |
4270 |
0.84 |
150 |
14.71 |
6.62 |
84.31 |
860 |
4 |
| RS-540SF-6035 |
12.0-24.0 |
12 |
20500 |
|
17210 |
|
|
380 |
67.1 |
|
|
|
| RS-540SA-30100 |
12.0-24.0 |
24 |
15000 |
0.6 |
12700 |
2.8 |
320 |
31.37 |
41.7 |
205.88 |
2100 |
15.25 |
| RS-540SA-16280/65.5 |
12.0-24.0 |
24 |
5100 |
0.1 |
4095 |
0.472 |
164.9 |
16.2 |
6.935 |
88.2 |
889.96 |
2.148 |
| RS-540SA-20240 |
12.0-24.0 |
24 |
6060 |
0.18 |
5000 |
0.66 |
186 |
18.24 |
9.54 |
103.92 |
1060 |
3.12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
