Stepper Motors |
|
|
|
|
|
 Data Group: 1510
SKU: 1125023
Weight (Kg): 1.0000
Decsription: 17HD-6.5X200MM
HS Code: 8483.40.9000
Applications: Stage lights, securities, advertisement board
 |
|
|
|
|
|
无标题文档
KYSAN SKU |
MFG Model |
Step angle |
No. of Phase |
Voltage (V) |
Current (A) |
Resistance (O) |
Inductance (mH) |
Holding Torque (mN.m) |
Detent Torque (mN.m) |
Weight (Kg) |
Rotor Inertia(g.cm2) |
| 1040104 |

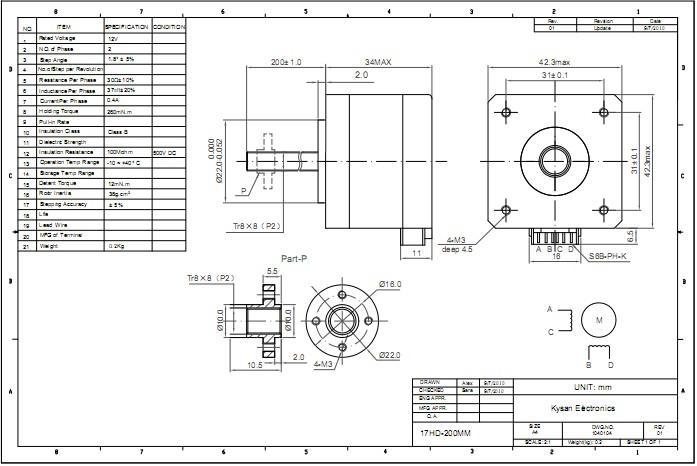

17HD-200MM |
1.8° |
2 |
12 |
0.4 |
30±10% |
37±20% |
260 |
12 |
0.2 |
38 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
