Stepper Motors |
|
|
|
|
|
 Data Group: 531
SKU: 1136005
Weight (Kg): 0.5000
Decsription: 42BY48B14
HS Code: 8501.10.4040
Applications: Office Automation Equipment such as printer,electrograph and scanner;Car;Stage lighting.
 |
|
|
|
|
|
KYSAN SKU |
MFG Model |
No. of Phase |
Step Angle (Deg.) |
Voltage (V) |
Resist. (Ohms) |
Current? (mA) |
Induct. (mH) |
Detent Torque (g.cm) |
Holding Torque (g-cm) |

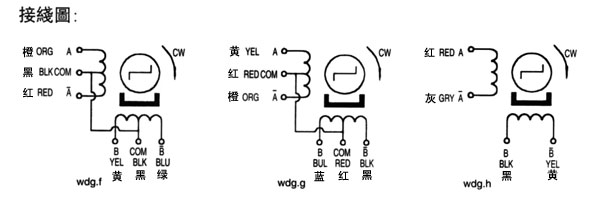

Wdg |

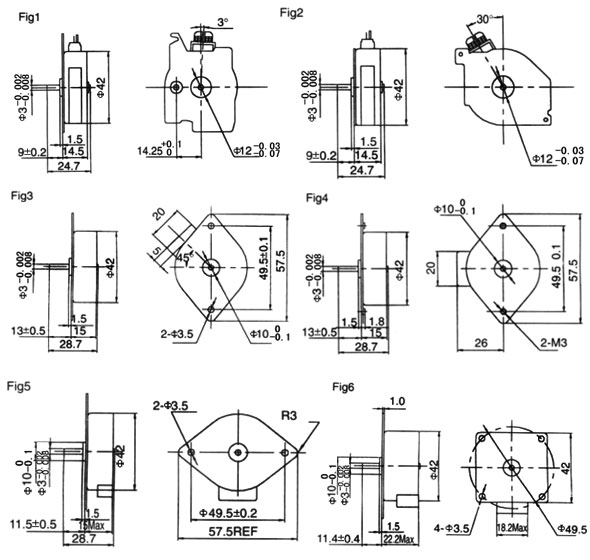

Pdg. |
|
| 1136001 |
42BY48B02 |
4 |
7.5 |
12 |
40 |
300 |
28 |
130 |
500 |
f |
1 |
| 1136002 |
42BY48B04 |
4 |
7.5 |
24 |
110 |
220 |
53 |
145 |
630 |
f |
3 |
| 1136003 |
42BY48B04M |
4 |
7.5 |
24 |
120 |
200 |
57 |
145 |
630 |
f |
4 |
| 1136004 |
42BY48B08 |
4 |
7.5 |
24 |
75 |
320 |
33 |
145 |
600 |
g |
5 |
| 1136005 |
42BY48B14 |
4 |
7.5 |
12 |
50 |
240 |
? |
145 |
450 |
g |
5 |
| 1136006 |
42BY48B03 |
4 |
7.5 |
12 |
57 |
210 |
18 |
105 |
300 |
g |
2 |
| 1137001 |
42BY48H02 |
4 |
7.5 |
24 |
48 |
500 |
? |
130 |
630 |
g |
6 |
| 1137002 |
42BY48H05 |
4 |
7.5 |
14 |
70 |
200 |
? |
130 |
450 |
g |
6 |
| 1137003 |
42BY48H06 |
4 |
7.5 |
9 |
20 |
450 |
18.5 |
130 |
800 |
g |
6 |
| 1137004 |
42BY48H07 |
4 |
7.5 |
24 |
85 |
280 |
78 |
130 |
780 |
g |
6 |
| 1137005 |
42BY48H08 |
2 |
7.5 |
5 |
9.1 |
550 |
? |
130 |
630 |
h |
6 |
| |
