Stepper Motors |
|
|
|
|
|
 Data Group: 524
SKU: 1139005
Weight (Kg): 0.5000
Decsription: 30BYJ05-PH
HS Code: 8501.10.4040
Applications: Office equipment
 |
|
|
|
|
|
Manufacturer |
Phase |
Voltage |
Current |
Resistance |
Step Angle |
Gear |
No load |
Detent
|
Detent Torque |
Holding Torque |

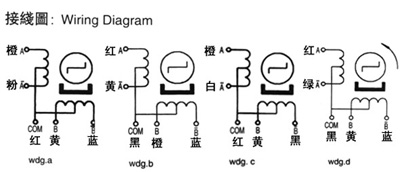

Wdg. |

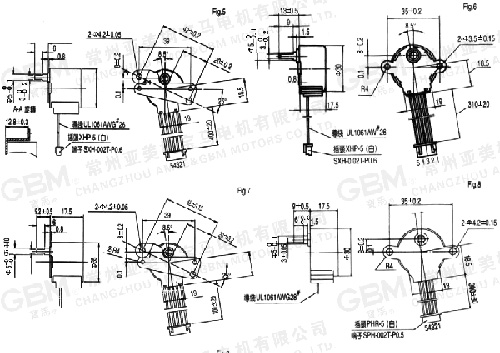

Drawing |
Model |
Number |
VDC |
(mA) |
(Ohms) |
Degree |
Ratio |
PPS |
PPS |
(g.cm) |
(g.cm) |
Figure |
Figure |
| 28BYJ01A |
4
|
12 |
60 |
200 |
5.625/64 |
1/64 |
1000 |
600 |
400 |
350 |
a |
1 |
| 28BYJ01A1 |
4 |
12 |
40 |
300 |
5.625/64 |
1/64 |
900 |
550 |
300 |
300 |
a |
2 |
| 28BYJ01C |
4 |
12 |
40 |
300 |
5.625/64 |
1/64 |
900 |
550 |
300 |
350 |
a |
3 |
| 28BYJ012A |
4 |
12 |
60 |
200 |
5.625/64 |
1/64 |
1000 |
600 |
400 |
350 |
a |
1 |
| 30BYJ011 |
4 |
12 |
40 |
300 |
7.5/85.25 |
1/85.25 |
800 |
450 |
350 |
350 |
b |
4 |
| 30BYJ01C1 |
4 |
12 |
40 |
300 |
7.5/85.25 |
1/85.25 |
800 |
450 |
350 |
350 |
b |
5 |
| 30BYJ02AH |
4 |
12 |
60 |
200 |
7.5/85.25 |
1/85.25 |
900 |
500 |
400 |
350 |
a |
6 |
| 30BYJ03C |
4 |
12 |
75 |
160 |
7.5/85.25 |
1/85.25 |
1000 |
600 |
500 |
400 |
a |
7 |
| 30BYJ05-PH |
4 |
12 |
40 |
300
|
7.5/85.25 |
1/85.25 |
800 |
500 |
300 |
350 |
c |
8 |
| |
