Spur Geared Motors |
|
|
|
| |
|
 Data Group: 119
SKU: 1151083
Weight (Kg): 0.5000
Decsription: B42RH-24V69RPM
HS Code: 8501.31.6000
Applications: Garage-door, Electric-drive curtain, Medical equipment.
 |
|
|
|
|
| |
KYSAN SKU |
MFG Model |
Rated Voltage (V) |
No Load |
Gear Ratio |
Maximum Efficiency |
Power(w) |
Motor Size (mm) |
Gear Case Size (mm) |
Shaft Size (mm) |
Current（A） |
Speed (RPM) |
Speed (RPM) |
Current (A) |
Torque (Kg.cm) |
Eff% |
1158001 |
A60FM |
12 |
0.58 |
75 |
68:1 |
65 |
1.15 |
10 |
|
14 |
Φ42x66 |
Φ60x30.5 |
Φ6.5x22 |
1158002 |
A60FM |
24 |
0.384 |
160 |
26:1 |
129 |
1.518 |
9.11 |
33.7 |
16.7 |
Φ42x66 |
Φ60x32 |
Φ6.5x22 |
1158004 |
A60FM |
24 |
0.33 |
13 |
334:1 |
10 |
1.38 |
80 |
26.2 |
11.43 |
Φ42x66 |
Φ60x35.5 |
Φ6.5x22 |

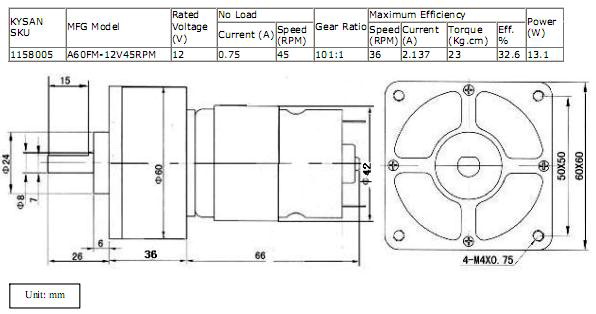

1158005 |
A60FM |
12 |
0.75 |
45 |
101:1 |
36 |
2.137 |
23 |
32.6 |
13.1 |
Φ42x66 |
Φ60x36 |
Φ6.5x22 |
1158007 |
A60FM |
24 |
0.43 |
500 |
9:1 |
449 |
0.815 |
1.5 |
36 |
17.7 |
Φ42x66 |
Φ60x33 |
Φ6.5x22 |
|
|
| |
60mm DC Gear Motor |
|
| |
|
|
| |
|
|
| |
|
|
| |
