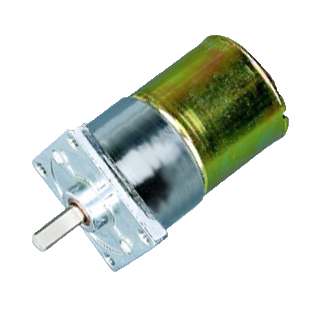

Spur Geared Motors
Data Group: 3401
SKU: 1151403
Weight (Kg): 0.5000
Decsription: B37FG-12V123RPM
HS Code: 8501.31.6000
Applications: Electric-drive curtain, Stage illumination, Air brake switch
Untitled Document
MFG Model
Rated
No Load
Maximum Efficiency
Power
Gear Box
Voltage
Current
Speed
Speed
Gear
Current
Torque
Eff%
Rated
Length
(V)
（A）
(RPM)
(RPM)
Ratio
(A)
(N.m)
Watts
(mm)
B37FG-12V250RPM
12
250
190
20:1
0.116
23.28%
2.31
23
B37FG-12V123RPM
12
123
94
41:1
0.235
23.33%
2.32
25
B37FG-12V60RPM
12
60
46
83:1
0.457
22.20%
2.21
27
B37FG-12V45RPM
12
45
34
111:1
0.612
21.97%
2.18
27
B37FG-12V19RPM
12
19
15
258:1
1.351
21.40%
2.13
30

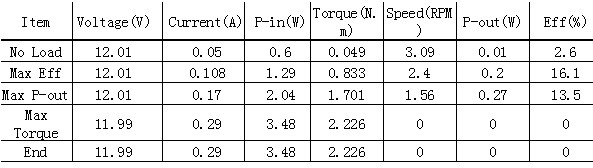

B37FG-12V3RPM
12
0.05
3.09
2.4
564:1
0.108
0.833
16.10%
2.7
30
B37FG-24V250RPM
24
250
190
20:1
0.132
22.59%
2.63
23
B37FG-24V123RPM
24
123
94
41:1
0.268
22.69%
2.65
25
B37FG-24V60RPM
24
60
46
83:1
0.52
21.55%
2.51
27
B37FG-24V45RPM
24
45
34
111:1
0.696
21.32%
2.48
27
B37FG-24V19RPM
24
19
15
258:1
1.537
20.77%
2.42
30
