Vibrating Motors |
|
|
|
|
|
 Data Group: 1265
SKU: 1161014
Weight (Kg): 0.0500

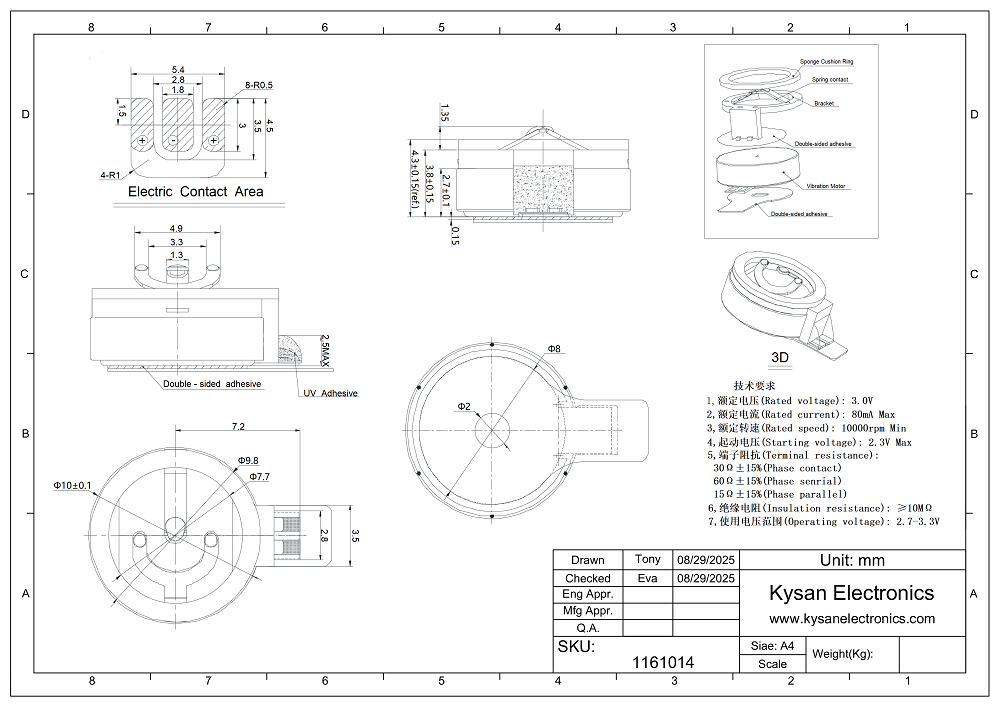

Decsription: C1026B200F
HS Code: 8483.40.9000
Applications: Pagers, Cell phones, Instrument.
 |
|
|
|
|
|
| Mfg Model |
Figure |
Motor Diameter |
Motor Thickness |
HWCC |
Rated Voltage |
Operating Voltage |
Rated Current |
Rated Speed |
| Number |
Number |
(mm) |
(mm) |
(mm) |
(VDC) |
(VDC) |
(mA) |
(RPM) |
| C0834B011F |
1 |
8 |
3.4 |
N/A |
3 |
2.7-3.3 |
100 |
12000 |
| C1020B008F1 |
1 |
10 |
2 |
N/A |
3 |
2.7-3.3 |
90 |
9000 |
| C1026B002F |
1 |
10 |
2.7 |
N/A |
3 |
2.7-3.3 |
90 |
9000 |
| C1026B200F |
2 |
10 |
2.6 |
4.15 |
3 |
2.5-4.0 |
90 |
10000 |
| C1026B300F |
2 |
10 |
2.6 |
2.9 |
3 |
2.7-3.3 |
90 |
9000 |
| C1030A002F |
1 |
10 |
3 |
N/A |
1.3 |
1.0-1.7 |
100 |
9000 |
| C1030B028F |
1 |
10 |
3 |
N/A |
3 |
2.7-3.3 |
100 |
9000 |
| C1030B200F |
2 |
10 |
3 |
4.5 |
3 |
2.7-3.3 |
100 |
9000 |
| C1034A003F |
1 |
10 |
3.4 |
N/A |
1.3 |
1.0-1.7 |
100 |
9000 |
| C1034H004F |
1 |
10 |
3.4 |
N/A |
1.5 |
1.2-1.8 |
35 |
10500 |
| C1226A001F |
1 |
12 |
2.7 |
N/A |
1.3 |
1.1-1.6 |
100 |
9000 |
| C1226B500F |
1 |
12 |
2.6 |
N/A |
3 |
2.5-4.0 |
80 |
9000 |
| C1234B016F |
1 |
12 |
3.4 |
N/A |
3 |
2.5-4.0 |
80 |
9000 |
| C1234B056F |
1.1 |
12 |
3.4 |
N/A |
3 |
2.7-3.3 |
80 |
9000 |
|
|
|
HWCC = Height with Contacts Compressed, also known as working height.
This is the height measured from the PCB to the top of the motor body.
N/A = Not Applicable
|
|
|
|
|
|
|
|
|
|
|
|
