DC Motors |
|
|
|
|
|
 Data Group: 616
SKU: 1112166
Weight (Kg): 0.2000
Decsription: RF-300EA-11400-75W
HS Code: 8501.31.6000
Applications: Office Automation Equipment: CD/DVD-ROM DriveAudio and Visual Equipment: Car CD Player / DVD Playe
 |
|
|
|
|
|

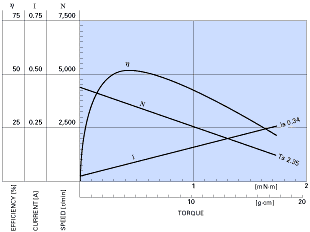

MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
RANGE |
V |
r/min |
A |
r/min |
A |
mN•m |
g•cm |
W |
mN•m |
g•cm |
A |
| RF-300EA-1D390-3.9V |
2.8 - 7.0 |
3.9 |
4400 |
0.021 |
3520 |
0.084 |
0.47 |
4.8 |
0.17 |
2.35 |
24 |
0.34 |
RF-300EA-1D390-2V |
1.6 - 6.5 |
2 |
2200 |
.015 |
1710 |
0.052 |
0.27 |
2.8 |
0.049 |
1.22 |
12 |
0.18 |
| RF-300EA-8Z485 |
1.6 - 11.0 |
8 |
7100 |
0.021 |
5760 |
0.09 |
0.62 |
6.3 |
0.37 |
3.28 |
33 |
0.39 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
