Stepper Motors |
|
|
|
|
|
 Data Group: 536
SKU: 1127017
Weight (Kg): 8.0000
Decsription: 85BYGH450B-07
HS Code: 8501.10.4040
Applications: Office automation, banking equipment, automotive control unit, telecommunication , home appliances,
 |
|
|
|
|
|
Untitled Document
KYSAN SKU |
MFG Model |
No. of phase |
Voltage (V) |
Current (A) |
Resistance (O) |
Inductance (mH) |
Max.Static Torque (Kg.cm) |
Weight (Kg) |

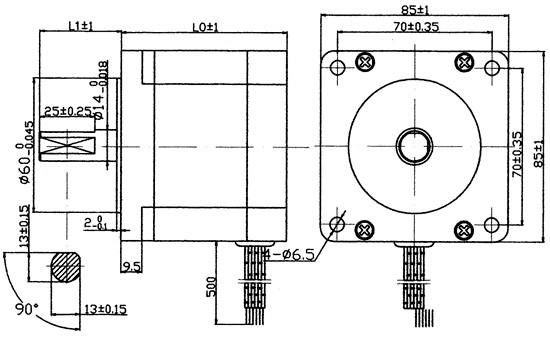

Size |
L0(mm) |
L1(mm) |
| 1127001 |
85BYGH450 |
4 |
4.4 |
2 |
2.2 |
21 |
333 |
2.2 |
68 |
37 |
| 1127002 |
85BYGH450A-01 |
2 |
4.4 |
3.5 |
0.5 |
2.5 |
18 |
1.7 |
68 |
37 |
| 1127003 |
85BYGH450A-02 |
2 |
2 |
4.5 |
0.44 |
2.5 |
21 |
1.7 |
68 |
37 |
| 1127004 |
85BYGH450B-01 |
2 |
6.4 |
2 |
2.9 |
12 |
42 |
2.8 |
113 |
37 |
| 1127005 |
85BYGH450B-02 |
2 |
2.8 |
4.5 |
0.73 |
3.5 |
42 |
3.5 |
113 |
37 |
| 1127006 |
85BYGH450C-01 |
4 |
7.8 |
2 |
3.9 |
24 |
63 |
3.8 |
151 |
37 |
| 1127007 |
85BYGH450C-03 |
4 |
3.8 |
3 |
2 |
12.2 |
67 |
3.8 |
151 |
37 |
| 1127008 |
85BYGH450A-04 |
4 |
3 |
3 |
1 |
4.05 |
23 |
1.7 |
68 |
37 |
| 1127009 |
85BYGH450A-06 |
2 |
2.1 |
4 |
0.53 |
2.3 |
24 |
1.7 |
68 |
37 |
| 1127010 |
85BYGH450A-07 |
2 |
1.4 |
5 |
0.28 |
1.45 |
25 |
1.7 |
68 |
37 |
|
|
|
