Stepper Motors |
|
|
|
|
|
 Data Group: 812
SKU: 1124059
Weight (Kg): 1.0000
Decsription: 17HGS-B1/10
HS Code: 8501.10.4040
Applications:
 |
|
|
|
|
|
无标题文档
| SKU |
Modle |
Step
angle |
Rated
current |
Resistance
per phase |
Inductance
per phase |
Holding
torque |

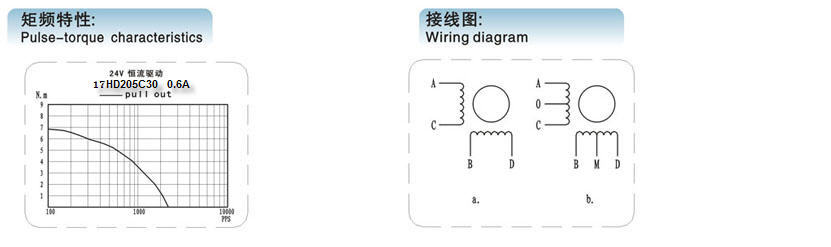

Wiring
diagram |
Motor
mass |
Gear
redution
ratro |
| A |
Ω |
mH |
mN.m |
mN.m |
kg |
| 1124059 |
17HD202C10 |
1.8° |
0.5 |
30 |
60 |
2 |
a |
0.35 |
1:10 |
| 1124060 |
17HD205C30 |
1.8° |
0.6 |
13.5 |
13.5 |
5.2 |
b |
0.35 |
1:30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
