Stepper Motors |
|
|
|
|
|
 Data Group: 1882
SKU: 1040301
Weight (Kg): 0.5000
Decsription: 11HY106-102
HS Code: 8483.40.9000
Applications: Medical equipment
 |
|
|
|
|
|
| MFG Model |
Step Angle |
Phase |
Resolution |
Rated Current |
Resistance |
Inductance |
Rotor Inertia |

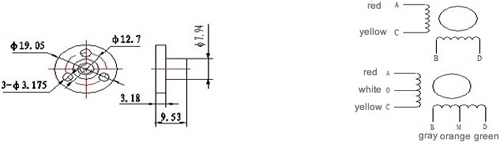

Wiring |
Weight |

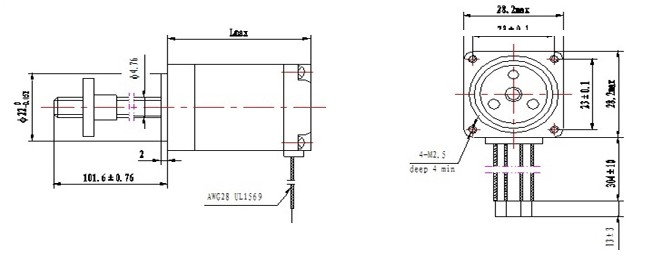

Motor Length |
| Degree |
Number |
mm |
A |
Ohm |
mH |
g.cm² |
Diagram |
Kg |
L |
| 11HY106-102 |
1.8 |
4 |
0.003175 |
1.5 |
0.7 |
0.12 |
9 |
B |
0.12 |
33 |

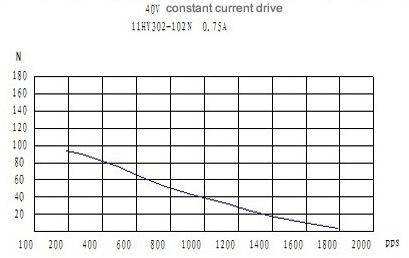

| 11HY302-102 |
1.8 |
2 |
0.003175 |
0.75 |
6.7 |
3 |
12 |
A |
0.18 |
45 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
