Stepper Motors
Data Group: 792
SKU: 1124055
Weight (Kg): 2.0000
Decsription: 42BYG48U-18W32
HS Code: 8501.10.4040
Applications: Office Automation, banking equipment, Automobil control unit, telecom, home appliance
Untitled Document
Mfg Model

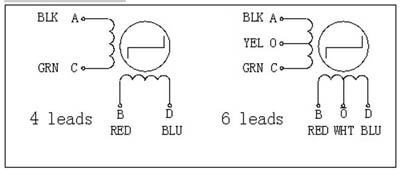

Lead Wire Numbers
Step Angel (Degree)
Motor Length (mm)
Rate Voltage (V)
Rate Current (A)
Phase Resistance ( Ω )
Phase Inductance (mH)
Holding Torque (g.cm)
Rotor Inertia (g. c㎡)
Detent Torque (g.cm)
Motor Weight (kg)
42BYGH208
4
1.8
34
12
0.4
30
37
2600
34
200
0.2
42BYGH609
4
1.8
40
3.4
1.7
2
3
3400
54
220
0.24
42BYGH804
4
1.8
48
3.6
1.2
3
5
4500
68
280
0.34
42BYGH811
4
1.8
48
3.1
2.5
1.25
1.8
4800
68
280
0.34
42BYGH213
5
1.8
34
12
0.6
20
15
2000
34
200
0.2
42BYGH602
6
1.8
40
12
0.4
30
21
2500
54
220
0.24
42BYGH607
6
1.8
40
3.6
1.2
3
3.2
2600
54
220
0.24
42BYGH205
6
1.8
34
12
0.3
40
18
1200
34
200
0.2
42BYGH801
6
1.8
48
12
0.4
30
25
3200
68
280
0.34
©2003 KYSAN ELECTRONICS All Rights Reserved!
