Stepper Motors
Data Group: 942
SKU: 1040043
Weight (Kg): 0.5000
Decsription: 14HA005-15
HS Code: 8501.10.4040
Applications: Stage lights, securities, advertisement board
Untitled Document
Model
Step Angle (Degree)
Rated Current (A)
Resistance per phase (Ohm)
Inductance per phase (mH)
Holding Torque (mN.m)
Detent Torque (mN.m)
Rotor Inertia (g.cm2)

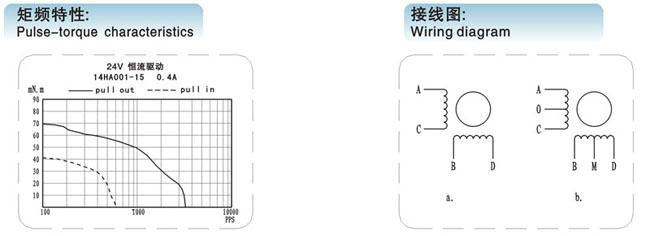

Wiring Diagram
Motor Mass (g)

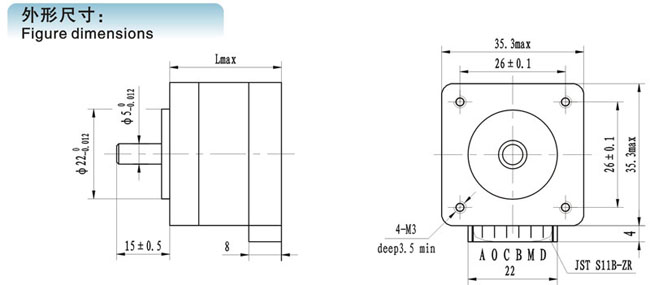

Motor Length (mm)
14HA001-15
0.9
0.4
20
18
80
12
10
a
0.16
28
14HA005-15
0.9
0.16
30
26
50
12
10
b
0.16
28
