Stepper Motors |
|
|
|
|
|
 Data Group: 1875
SKU: 1040151
Weight (Kg): 1.0000

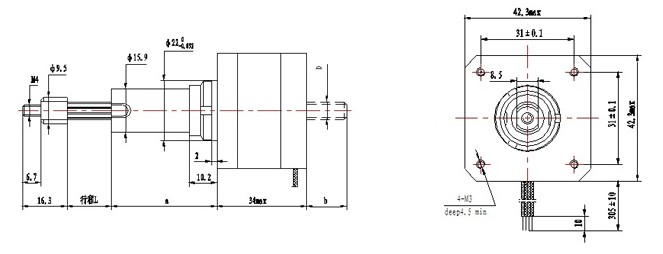

Decsription: 17HD3-12.7X6.35
HS Code: 8483.40.9000
Applications: Medical equipment
 |
|
|
|
|
|
| MFG Model |
Step Angle |
Phase |
Resolution |
Rated Current |
Resistance |
Inductance |

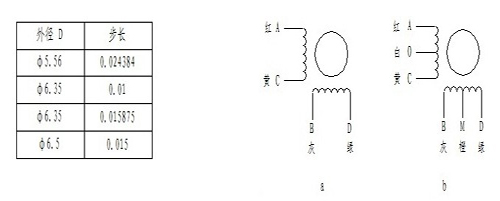

Wiring |
Rotor Inertia |
Weight |
| Degree |
Number |
mm |
A |
Ohm |
mH |
Diagram |
g.cm² |
Kg |
| 17HD3-LxD |
1.8 |
2 |
0.010 |
0.4 |
30 |
37 |
A |
38 |
0.26 |
| 17HD5-LxD |
1.8 |
2 |
0.024 |
0.6 |
22 |
28 |
A |
38 |
0.26 |
| 17HD9-LxD |
1.8 |
4 |
0.015 |
0.4 |
30 |
16 |
B |
38 |
0.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
