Stepper Motors |
|
|
|
|
|
 Data Group: 2099
SKU: 1040065
Weight (Kg): 1.0000
Decsription: 42BYG34U-18T16
HS Code: 8483.40.9000
Applications: Technical instrument
 |
|
|
|
|
|
无标题文档
| KYSAN SKU |
Model |
Step Angle (Degree) |
Rated Current (A) |
Resistance per phase (Ohm) |
Inductance per phase (mH) |
Holding Torque (mN.m) |
Detent Torque (mN.m) |
Rotor Inertia (g.cm2) |

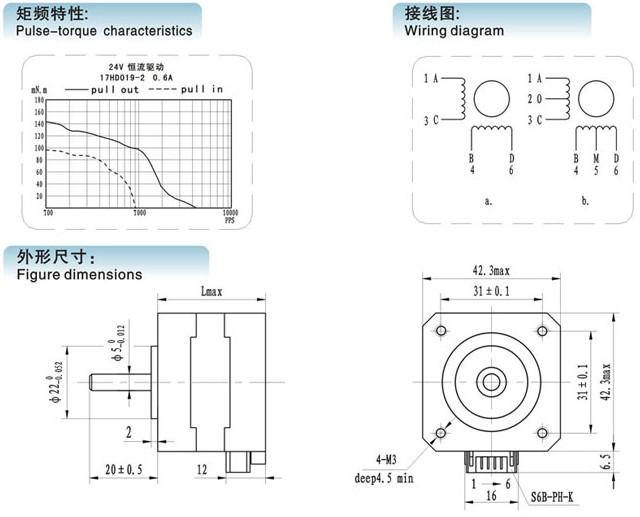

Wiring Diagram |
Motor Mass (g) |
Motor Length (mm) |
| 1040065 |
17HD019-2 |
1.8 |
0.6 |
9 |
5 |
160 |
12 |
38 |
B |
0.2 |
34 |
| 1040062 |
17HD212-3 |
1.8 |
0.6 |
7 |
15 |
280 |
15 |
57 |
A |
0.24 |
40 |
| 1040063 |
17HD401-22 |
1.8 |
0.4 |
30 |
45 |
160 |
20 |
82 |
A |
0.38 |
48 |
| 1040061 |
17HD050W |
1.8 |
0.36 |
33 |
17 |
\ |
\ |
38 |
\ |
\ |
34 |
| 1040060 |
17HD102-2 |
1.8 |
0.4 |
30 |
30 |
260 |
15 |
54 |
A |
0.23 |
38 |
| 1040059 |
17HD033 |
1.8 |
0.4 |
30 |
27 |
\ |
\ |
38 |
\ |
\ |
34 |
| 1040058 |
17HD301 |
1.8 |
0.33 |
46.5 |
110 |
\ |
\ |
72 |
\ |
\ |
44 |
| 1040082 |
17HD401-22 |
1.8 |
0.4 |
30 |
45 |
460 |
24 |
82 |
A |
0.34 |
48 |
| 1040057 |
17HD003-2 |
1.8 |
0.4 |
30 |
37 |
260 |
12 |
38 |
A |
0.2 |
34 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
