Stepper Motors
Data Group: 938
SKU: 1040071
Weight (Kg): 1.0000
Decsription: 42BYG30B-9T1
HS Code: 8501.10.4040
Applications: CNC Machines, office equipment, technical instrument
Untitled Document
KYSAN SKU
Model
Step Angle (Degree)
Rated Current (A)
Resistance per phase (Ohm)
Inductance per phase (mH)
Holding Torque (mN.m)
Detent Torque (mN.m)
Rotor Inertia (g.cm2)

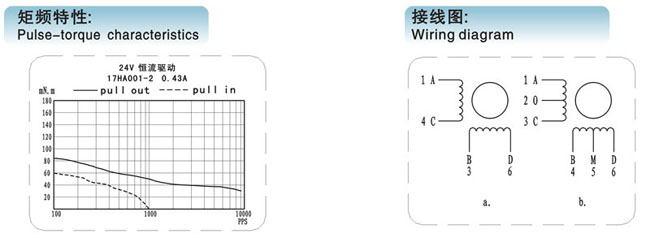

Wiring Diagram
Motor Mass (g)
Motor Length (mm)
1040071
17HA001-2
0.9
0.43
8
11
100
8
20
a
0.19
29.5
1040070
17HA002-3
0.9
0.4
16.8
7
70
8
20
b
0.19
29.5
1040069
17HA101-2
0.9
0.4
30
33
150
12
38
b
0.23
34
©2003 KYSAN ELECTRONICS All Rights Reserved!
www.kysanelectronics.com
Data Group: 938
