| MFG MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
| OPERATING |
RATED |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| RANGE |
VDC |
RPM |
A |
RPM |
A |
mN-m |
g-cm |
W |
mN-m |
g-cm |
A |
| RF-500TB-18280-A |
3.0-6.0 |
6 |
5150±5% |
0.05 |
4300±5% |
0.26 |
2.06 |
21 |
0.27 |
13.2 |
135 |
1.87 |

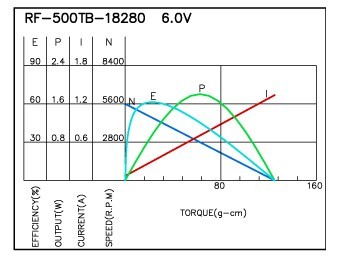

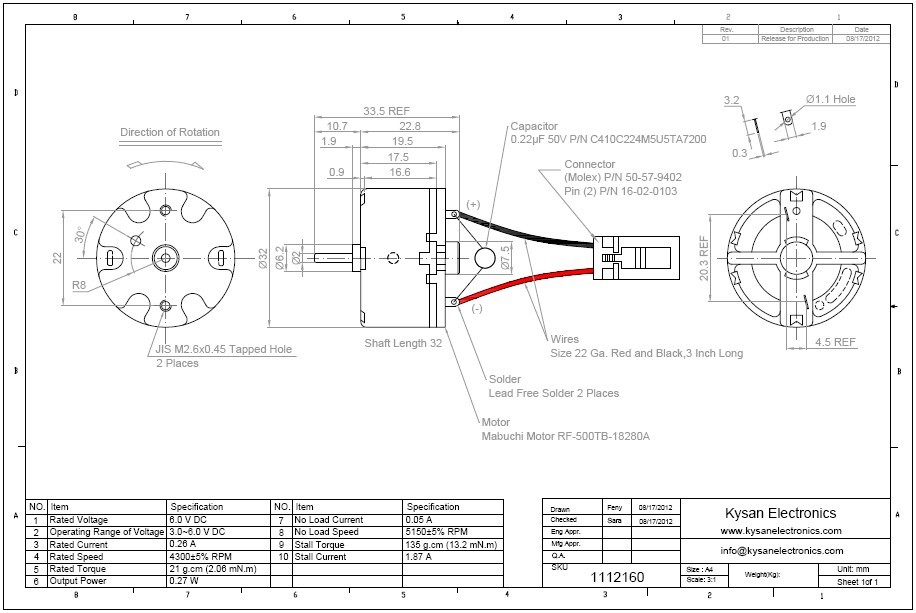

| Wires length 3 Inch |
| Size 22 AWG Red and Black |

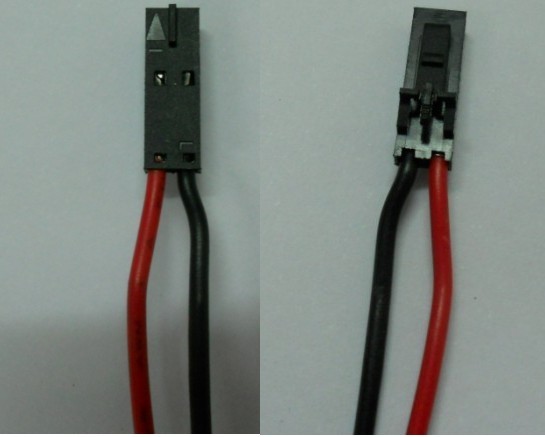

| Connector housing (Molex) P/N 50-57-9402 (1pc) pins P/N16-02-0103 (2pc's) |
| 0.22uF 50V P/N C410C224M5U5TA7200 |
| Lead free solder |
The shaft diameter tolerance of 1112160 is -0.003/+0.005.
Black wire connect to(+) terminal and red wire connect to (-) terminal. 5% speed tolerance only.
|
Data Group: 2352
