Stepper Motors |
|
|
|
|
|
 Data Group: 532
SKU: 1123026
Weight (Kg): 2.0000
Decsription: 42BYG34U-18W14L25
HS Code: 8501.10.4040
Applications: Medical equipment, stage lighting
 |
|
|
|
|
|
KYSAN SKU |
MFG Model |
No. of Phase |
Current (A) |
Resistance (O) |
Inductance (mH) |
Holding Torque (g.cm) |
Moment of inertia (g.cm2) |
Weight (Kg) |

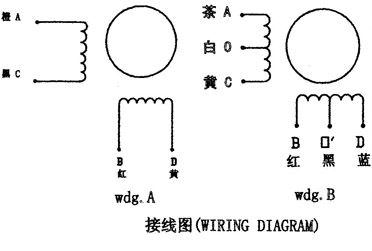

Wiring Diagram |

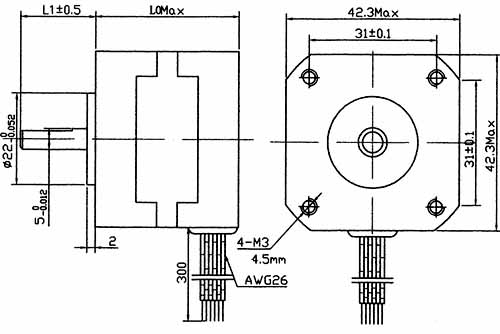

Size |
L0(mm) |
L1(mm) |
1123001 |
42BYG014 |
4 |
0.45 |
19 |
13 |
1300 |
20 |
0.20 |
WDG.B |
33.50 |
5 |
1123002 |
42BYG016 |
4 |
0.16 |
70 |
44 |
950 |
20 |
0.20 |
WDG.B |
33.50 |
17 |
1123003 |
42BYG017 |
2 |
0.42 |
15 |
16 |
1400 |
20 |
0.22 |
WDG.A |
34 |
13 |
1123004 |
42BYG023 |
2 |
0.4 |
28.5 |
32 |
2000 |
20 |
0.22 |
WDG.A |
33 |
5 |
1123005 |
42BYG034 |
2 |
0.4 |
35 |
44 |
2300 |
20 |
0.20 |
WDG.A |
33.5 |
24 |
1123006 |
42BYG205 |
4 |
0.16 |
75 |
65 |
1320 |
20 |
0.22 |
WDG.B |
36 |
5 |
1123007 |
42BYG228 |
4 |
0.4 |
30 |
22 |
2000 |
20 |
0.22 |
WDG.B |
38 |
5 |
1123008 |
42BYG023 |
2 |
0.4 |
30 |
36 |
2100 |
20 |
0.20 |
WDG.A |
33.5 |
16 |
1123009 |
42BYG304 |
2 |
0.3 |
40 |
80 |
2800 |
20 |
0.22 |
WDG.A |
38 |
5 |
1123010 |
42BYG015 |
4 |
0.3 |
160 |
50 |
1250 |
20 |
0.22 |
WDG.B |
38 |
5 |
1123011 |
42BYG020 |
2 |
0.24 |
38 |
52 |
664 |
20 |
0.25 |
WDG.A |
32 |
6 |
1123012 |
42BYG019 |
4 |
0.28 |
39.4 |
23.5 |
1200 |
20 |
0.20 |
WDG.B |
33.5 |
16 |
1123013 |
42BYG020 |
4 |
0.6 |
20 |
14 |
1700 |
20 |
0.20 |
WDG.B |
33.5 |
16 |
1123014 |
42BYG206 |
2 |
1.2 |
2.7 |
5 |
2400 |
20 |
0.24 |
WDG.A |
38 |
24 |
1123015 |
42BYG013 |
4 |
0.2 |
3 |
39 |
1000 |
20 |
0.20 |
WDG.B |
33.5 |
16 |
| |
