DC Motors |
|
|
|
|
|
 Data Group: 263
SKU: 1112337
Weight (Kg): 0.5000

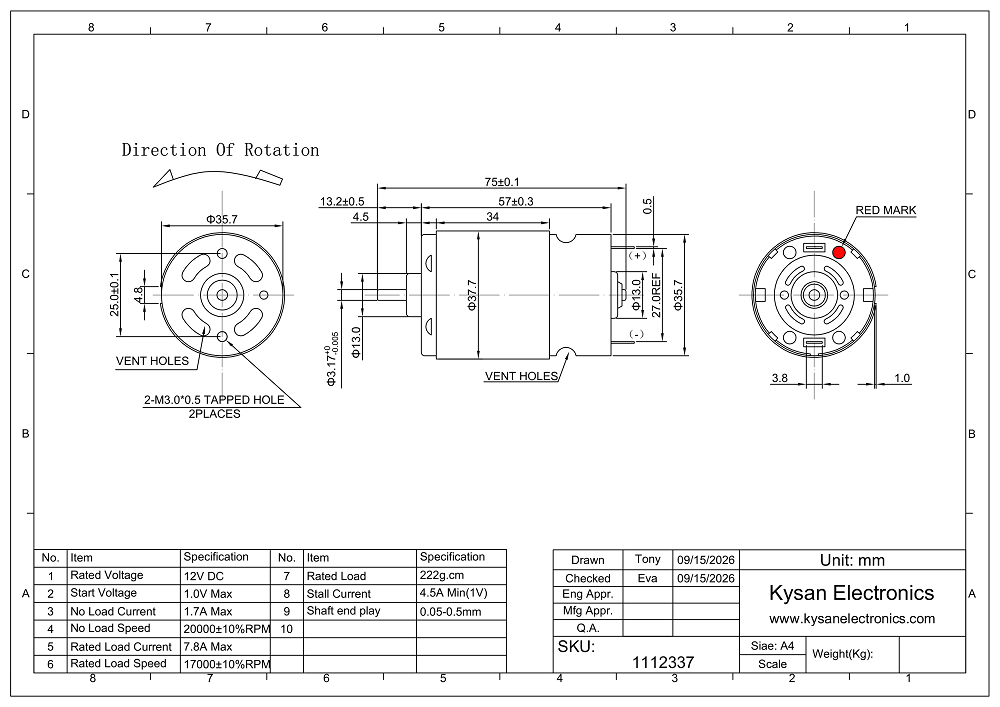

Decsription: RS-550SH-7524-A
HS Code: 8501.31.6000
Applications: Cordless Power Drill & Screwdriver, Air Compressor Cordless Garden Toll, Toys and Models, Ride-on To
 |
|
|
|
|
|
Untitled Document
MFG Model |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
EFF |
CURRENT |
TORQUE |
V |
V |
RPM |
A |
RPM |
A |
g.cm |
mN.m |
W |
% |
A |
g-cm |
mN-m |
| RS-550SH-6530F |
6.0-12.0 |
12 |
17600 |
1.5 |
15000 |
7.64 |
440 |
43.14 |
68 |
74.3 |
51.2 |
3400 |
333.3 |
| RS-550SH-6035F |
6.0-18.0 |
12 |
14200 |
1.3 |
12500 |
6.49 |
450 |
44.12 |
57.76 |
74.6 |
46 |
2900 |
284.3 |
| RS-550SH-6040F |
6.0-12.0 |
12 |
13400 |
1.1 |
11700 |
5.7 |
420 |
41.18 |
50.41 |
73.3 |
40.35 |
3400 |
333.3 |
| RS-550SH-6045F |
12.0-18.0 |
12 |
11800 |
1 |
10000 |
5.04 |
420 |
41.18 |
44.03 |
73.3 |
29 |
2780 |
272.6 |
| RS-550SH-7524 |
6-15.0 |
12 |
20500 |
1.68 |
17100 |
7.4 |
222 |
21.7 |
39.8 |
? |
32.4 |
1200 |
117.6 |
| RS-550SH-24V |
12.0-24 |
24 |
5450 |
0.238 |
4570 |
1.24 |
321 |
31.5 |
15.4 |
? |
6.48 |
2000 |
196 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
