DC Motors
Data Group: 735
SKU: 1112361
Weight (Kg): 0.1000

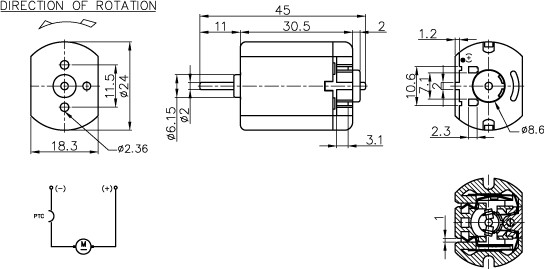

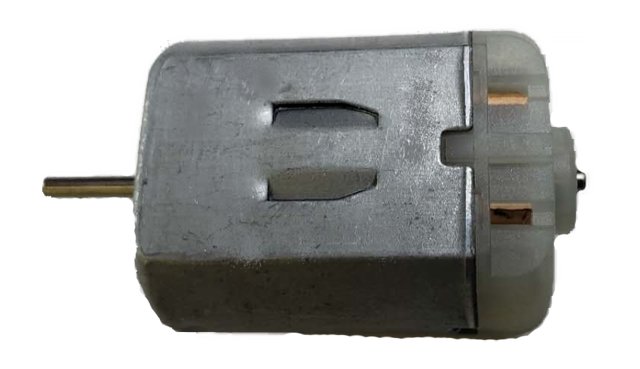

Decsription: DC-280P-22135P
HS Code: 8501.31.6000
Applications: Car lock
Untitled Document
Model VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
V V RPM A RPM A g.cm mN.m W % A g-cm mN-m
DC-280P-19160P 10.0-15.0 12 11100 0.14  9300  0.60  48  4.71  4.66  65  3.15  306  30.00

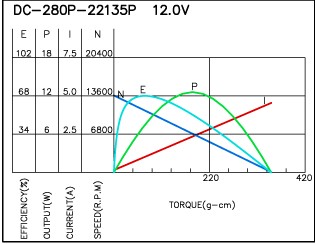

DC-280P-22135P 6.0-12.0 12 13700 0.15  11400  0.81  56  5.49  6.68  68  4.54  362  35.49
DC-280P-141310-N 12.0-24.0 24 12000 0.07  9600  0.38  58  5.69  5.75  63  1.71  309  30.29
DC-280PT-19150-N 6.0-12.0 12 12000 0.12  10200  0.60  46  4.51  4.88  70  3.29  302  29.61
