Stepper Motors |
|
|
|
|
|
 Data Group: 836
SKU: 1040101
Weight (Kg): 1.0000
Decsription: 17HD-B8X150-0.5A
HS Code: 8501.10.4040
Applications:
 |
|
|
|
|
|
Untitled Document
| General Specifications |
Electrical specification |
| Step angle |
1.8 ° ±5% |
Rated voltage |
12.5V |
| Number of phase |
2 |
Rated current |
0.5A |
| Insulation resistance |
100MΩMin(500V DC) |
Resistance per phase |
25Ω ±10% |
| Insulation class |
Class B |
Inductance per phase |
40mH±20% |
| Rotor inertia |
57g.cm2 |
Holding torque |
4kg.cm |
| Mass |
0.24kg |
Detent torque |
150g.cm |
|
|
|

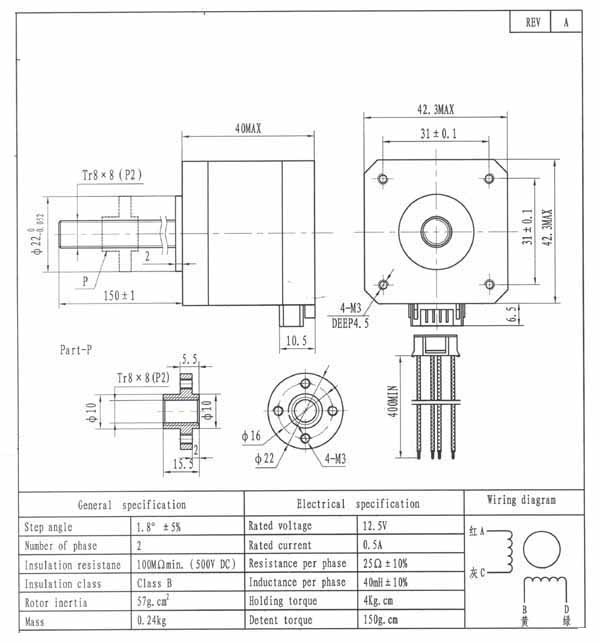

Unit: mm |
|
|
|
|
|
|
|
|
|
|
|
