Spur Geared Motors

Data Group: 1364
SKU: 1151765
Weight (Kg): 0.5000
Decsription: RB-350030-1/30
HS Code: 8501.31.6000
Applications: Machines, automations, home appliances, security surveillance systems

Untitled Document

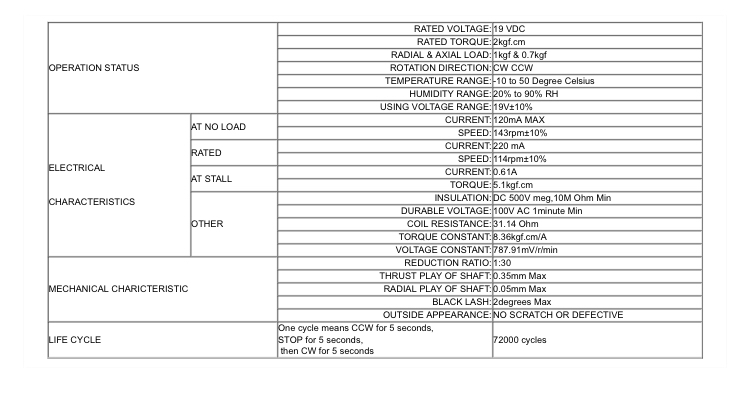

OPERATION STATUS
RATED VOLTAGE:
19 VDC
RATED TORQUE:
2kgf.cm
RADIAL & AXIAL LOAD:
1kgf & 0.7kgf
ROTATION DIRECTION:
CW CCW
TEMPERATURE RANGE:
-10 to 50 Degree Celsius
HUMIDITY RANGE:
20% to 90% RH
USING VOLTAGE RANGE:
19V±10%

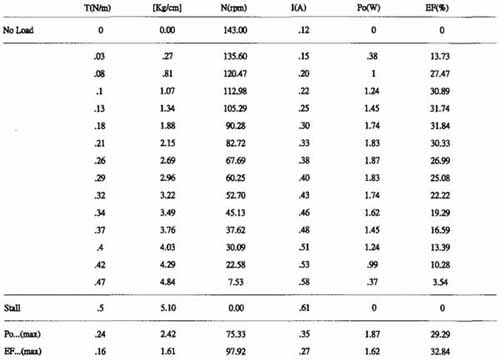

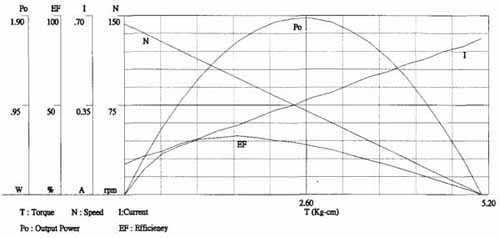

ELECTRICAL


CHARACTERISTICS
AT NO LOAD
CURRENT:
120mA MAX
SPEED:
143rpm±10%
RATED
CURRENT:
220 mA
SPEED:
114rpm±10%
AT STALL
CURRENT:
0.61A
TORQUE:
5.1kgf.cm
OTHER
INSULATION:
DC 500V meg,10M Ohm Min
DURABLE VOLTAGE:
100V AC 1minute Min
COIL RESISTANCE:
31.14 Ohm
TORQUE CONSTANT:
8.36kgf.cm/A
VOLTAGE CONSTANT:
787.91mV/r/min

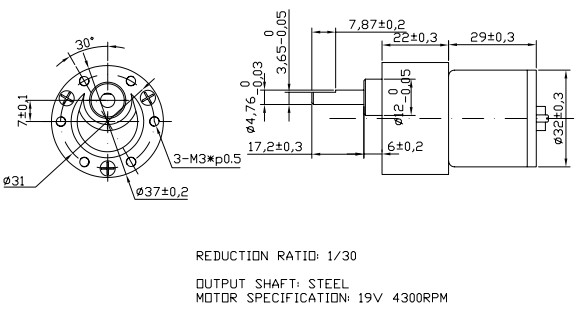

MECHANICAL CHARICTERISTIC
REDUCTION RATIO:
1:30
THRUST PLAY OF SHAFT:
0.35mm Max
RADIAL PLAY OF SHAFT:
0.05mm Max
BLACK LASH:
2degrees Max
OUTSIDE APPEARANCE:
NO SCRATCH OR DEFECTIVE
LIFE CYCLE One cycle means CCW for 5 seconds,
STOP for 5 seconds,
 then CW for 5 seconds
72000 cycles
