Measure AC&DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance, inductance
Excellent DC resolution factor of 2mV and expanded resist-ance measurement from 0.2Ω to 20MΩ
Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components
Continuity checking with an LED indicator

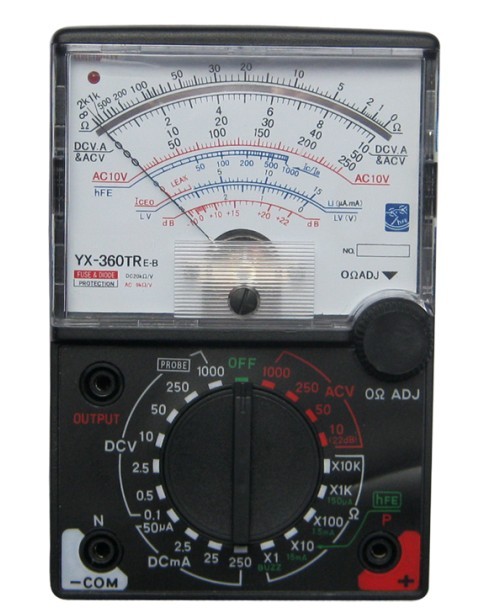

A large and bright meter with a scale length of 80mm and ifs sensitivity of 44uA at full scale
Fuse and diode protection
Measures hFE to 1000 using optional TR connector
DCV: 100m/500m/2.5/10/50/250V/1000V ± 3%f. S.
ACV: 10/50/250V/1000V ± 4%f. S.
DCA: 50u/2.5m/25m/250mA ± 3%f. S.
OHM: 2K/20K/200K/2M/20MΩ ± 3% of arc.
dB: -10~+62dB
L1: 150u/1.5m/15m/150mA
HFE: 0~1000(with TR connector)
Power supply: R6 (1.5V)*1
Size weight: 150*100*36mm 280g |
|
