DC Motors |
|
|
|
|
|
 Data Group: 239
SKU: 1112728
Weight (Kg): 0.2000
Decsription: RF-370CB-081100
HS Code: 8501.31.6000
Applications: Automotive Products> Air Conditioning Damper Actuator
 |
|
|
|
|
|
| MFG Model |
VOLTAGE (VDC) |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
| Operating Range |
Normal |
Speed (RPM) |
Current (A) |
Speed (RPM) |
Current (A) |
Torque (g-cm) |
Power (W) |
Current (A) |
Torque (g-cm) |

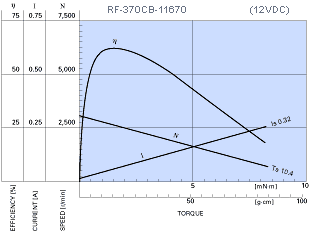

| RF-370CB-11670 |
7.0-16.0 |
12 |
3100 |
0.011 |
2620 |
0.059 |
16.6 |
0.45 |
0.32 |
106 |
| RF-370CB-15370 |
6.0-12.0 |
12 |
5600 |
0.026 |
4840 |
0.17 |
25.3 |
1.25 |
1.06 |
187 |
| RF-370CB-081100 |
8.0-16.0 |
12 |
1850 |
0.005 |
1510 |
0.022 |
10.1 |
0.16 |
0.1 |
55 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
©2003 KYSAN ELECTRONICS All Rights Reserved! www.kysanelectronics.com |
|
