DC Motors
Data Group: 3701
SKU: 1112519
Weight (Kg): 0.5000
Decsription: RS-555SH-9500-17D13
HS Code: 8483.40.9000
Applications: Office Automation Equipments, Printer, Computer Pe
Untitled Document

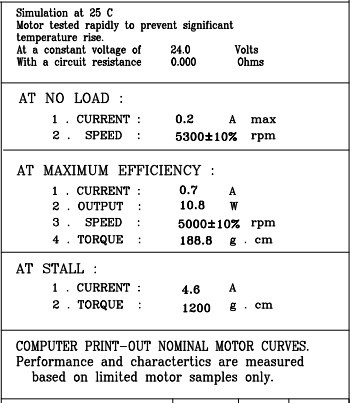

MFG Model VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE CURRENT TORQUE
V rpm A rpm A g.cm A g-cm
RS-555SH-9500 24 5200 0.08 4800 1.1 450 4.6 1200
