DC Motors


Data Group: 3785
SKU: 1112738
Weight (Kg): 0.1000

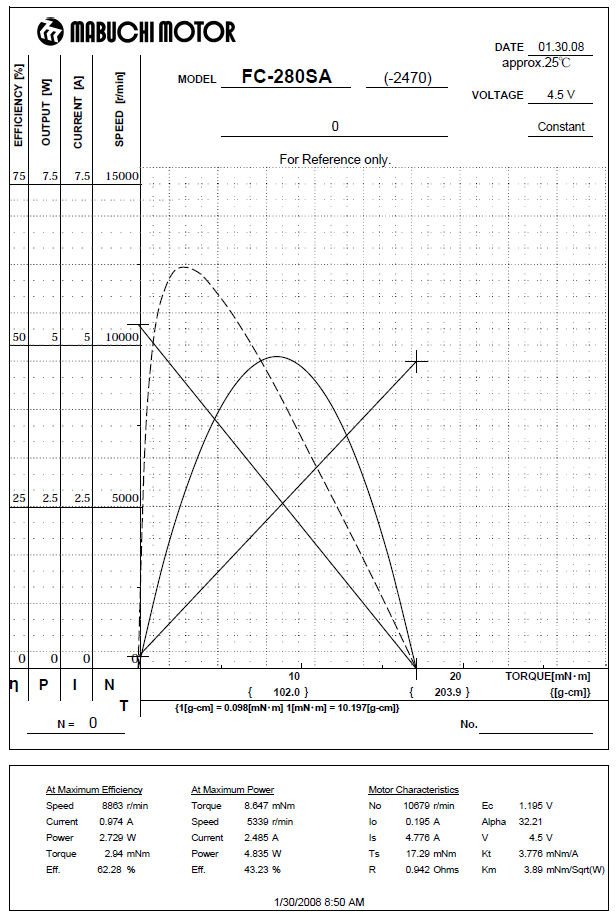

Decsription: FC-280SA-2470-2
HS Code: 8203.40.6000
Applications: Electric razors & robotic or novelty project



  FC280SA-2470. No Load Speed: 10,000 rpm Voltage: 3 to 4.5v DC. Double shafted. 2 mounting holes on spline. 11.5mm c-c. Shaft dimensions: 2.0mm (0.0787") shaft, A: 10.6mm (0.417") long one side, B: 5.5mm (0.218") long spline side. Body measures:
