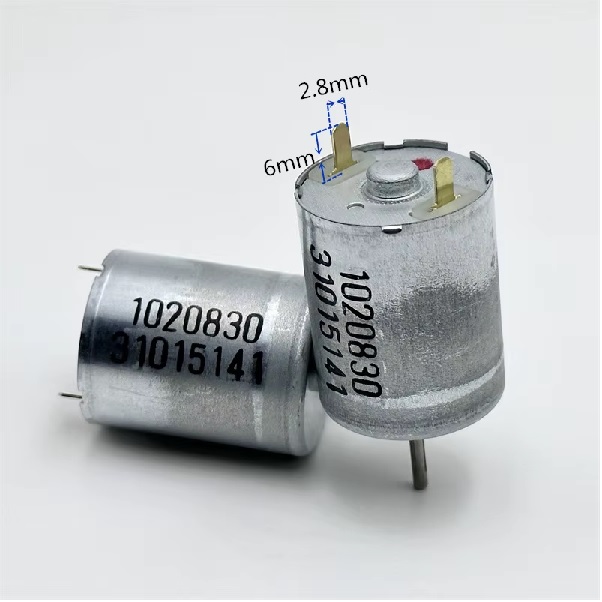

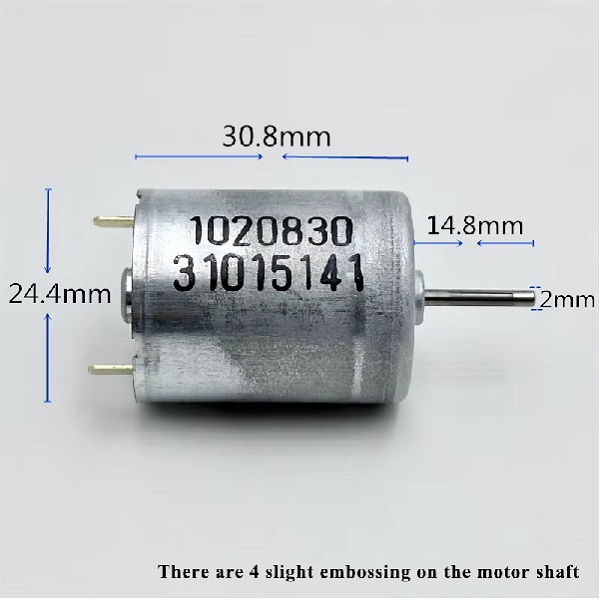

1.Brand: JOHNSON MOTOR 2.Type: Mini 370 Motor 3.Model number: 1020830 4.Motor size: 24.4mm*30.8mm 5.Output shaft diameter: 2mm () 6.Output shaft length: 14.8mm (include step height) 7.Weight: 53g 8.Voltage range: DC 12V-24V 9.Test data: Voltage:12V No-load speed:2750RPM No-load current:5mA Voltage:18V No-load speed:4070RPM No-load current:17mA Voltage:24V No-load speed:5350RPM No-load current:30mA 10.Note: There is no threaded hole in front of the motor, and the motor pin is a special conductive pin. |
|
